ECO 6000 Full
6 kVANominal current25 A
Starting current50 A
Weight17.5 kg
Cabinet dimensions (H x W x D)32 x 33 x 14 cm
Selected
ECO SERIES | WHOLE-HOME POWER

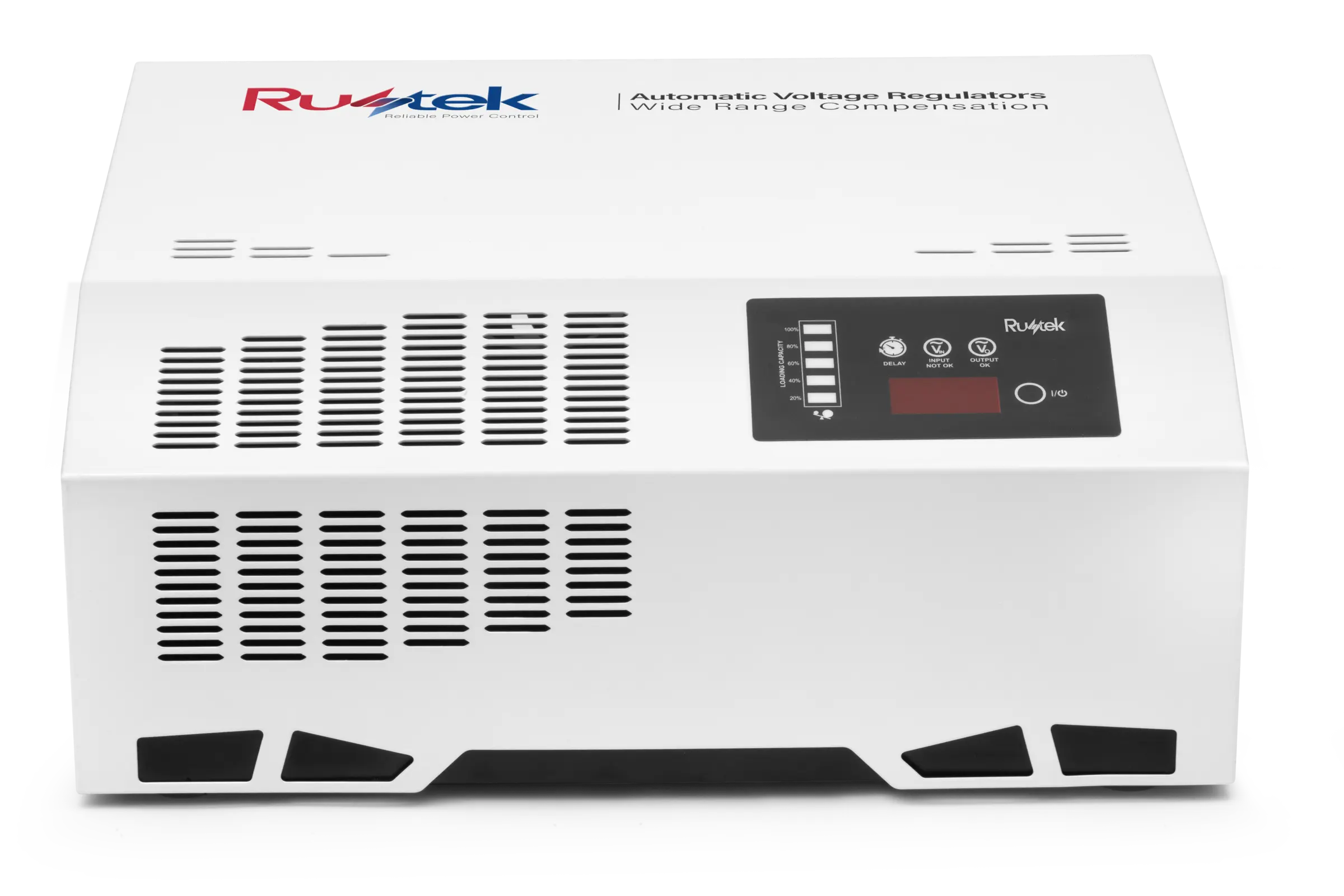

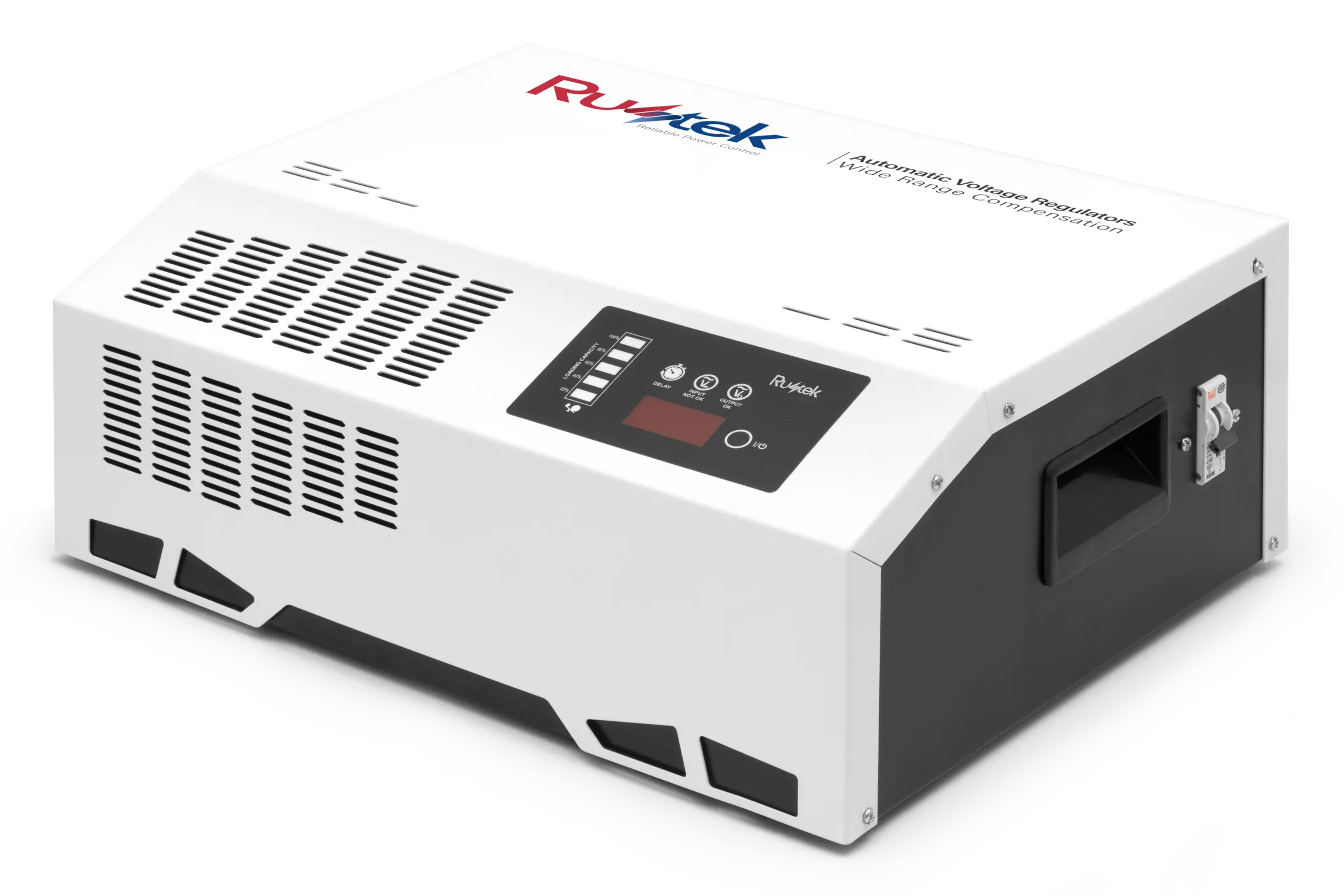

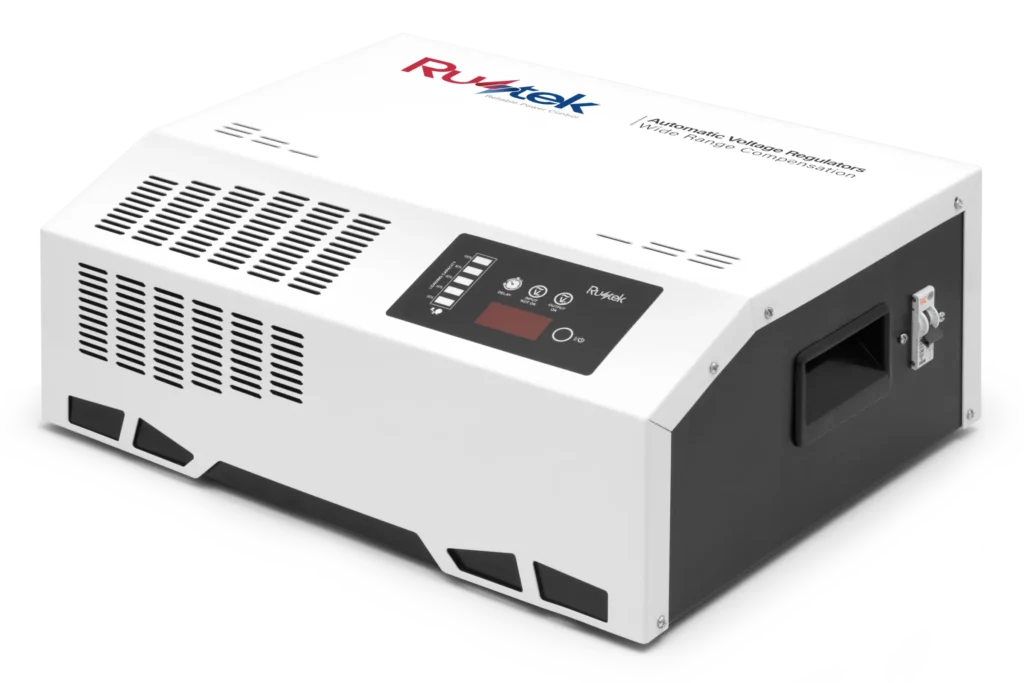

Automatic Voltage Regulation for Home Power
The ECO automatic voltage regulator family comprises five models from 6000 to 20000 VA. Designed for single-phase power supply, the series regulates eligible input-voltage fluctuations, includes digital monitoring and supports automatic and bypass operation. Select capacity using simultaneous load and starting current, not floor area alone.
6000-20000 VA155-265 V inputAutomatic and bypass modesFive power options
6000-20000 VA155-265 V inputAutomatic and bypass modesFive power options
Choose by capacity
Compare five ECO regulator models
Review each model's nominal current, starting current, cabinet dimensions and weight before selecting a whole-home stabilizer.
ECO 8000 Full
8 kVANominal current32 A
Starting current64 A
Weight23.5 kg
Cabinet dimensions (H x W x D)32 x 33 x 14 cm
Select model
ECO 12000 Full
12 kVANominal current45 A
Starting current90 A
Weight28.5 kg
Cabinet dimensions (H x W x D)32 x 33 x 14 cm
Select model
ECO 15000 Full
15 kVANominal current60 A
Starting current120 A
Weight32 kg
Cabinet dimensions (H x W x D)41 x 34 x 16 cm
Select model
ECO 20000 Full
20 kVANominal current80 A
Starting current160 A
Weight36 kg
Cabinet dimensions (H x W x D)41 x 34 x 16 cm
Select model
Why choose ECO
Protection and control for a home's power supply
Automatic voltage regulationCompensates for input-voltage fluctuations across the specified 155-265 V range.
Bypass operating modeSupports automatic and bypass modes for appropriate installation and service planning.
Adjustable power-up delayPower-up delay can be configured from 30 to 300 seconds.
Layered electrical protectionThe catalogue lists protection against overload, overheating, lightning-related transients and other electrical faults.
Digital monitoringDisplay and visual load indication help monitor and configure operating parameters.
Technical specifications
Shared technical details
| Operating input voltage | 155-265 V |
| Regulation steps | -1/+3 |
| Input frequency | 45-55 Hz |
| Power-up delay | 30-300 seconds, adjustable |
| Operating temperature | 5-35 °C |
| Display | 3-digit, 7-segment |
| Operating modes | Automatic and bypass |
Need help choosing?
Confirm your whole-home capacity
Share your measured minimum and maximum input voltage, simultaneous connected loads, motor starting currents and single-phase supply details before choosing an ECO regulator.
Ask Rustek →Technical documents
ECO regulator-series catalogues
Product FAQ
Questions about this product.
Calculate the equipment likely to run at the same time, account for motor starting current, confirm the measured input-voltage range and verify the current rating with a qualified installer.
No. They regulate available mains power within the specified operating range. A UPS or another backup source is required during an outage.
